Table type laser welding machine

Brand:
G-CUT
Product origin:
JINAN,CHINA
Delivery time:
15 days after receipt of deposit
Supply capacity:
500 sets per month
Download:
Table type laser welding machine

Applications:
1.Auto parts industry, Engine cylinder gasket, and Hydraulic tappet seal welding.
2.Filter seal welding, the sport plug welding, the valve push rod welding.
3.Anti-collision airbag electric detonator seals welding, the crankshaft or cylinder liner or heat treatment, etc.
4.Stainless steel advertising words, Microelectronics components, precision parts, high digital components, optical fiber connector, medical apparatus and instruments, etc.
Suitable materials: titanium, aluminum, copper, zinc, gold, sliver and many other metal and alloy, carbon steel and stainless steel materials, and also cooper-brass, cooper-titanium, nickel-cooper, cooper-titanium and many other heterogeneous metals.


Features:

1Accurately and precision welding machine, can welding small and complex font and LOGO, fast speed, no color difference after welding, no trace, no need to handle, beautiful appearance.

2No raised welding spot on welding surface. Do not need polishing grinding process, save work time. Appearance is beautiful.

3Laser welding Processing without noise, non-pollutio

4Specific to advertising industry, special long light path, 360 degrees of arbitrary rotation, larger scale range.

5Welding machine Optional with a CCD monitor, the welding effect is more clear and intuitive.

laser welding machine

Parameters:


Model NO.

JY-CW200

Working Area

300*200mm/500*300mm/700*500mm(optional)

Laser Power

200W (400W optional)

Load Bearing

≤200KG

Spot Size

0.2-1.8mm

Welding depth

0.8-1mm

Laser Wave Length

1064nm

Impulse Width

≤10ms

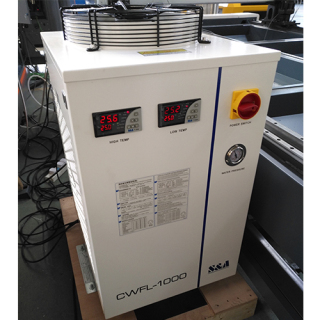

Laser Cooling

Water cooling

Water cooling

CW6000 (depends on laser power)

Total Power

<5KW

Viewing System

CCD


laser welding
