Laser Marking Machine
Fiber laser marking machine applications:
Fiber laser marking machine is widely used in hardware products, tools, accessories, electronic components, integrated circuits(IC), Electrical appliance, telecommunications equipment, precision instruments, jewelry, accessories, auto parts, medical devices and many other fields of graphics and text markup, as well as high-volume productions jobs. Also apply to the button of fabric, leather, wood products, luminous characters, non-metallic ink glass lamp marking.

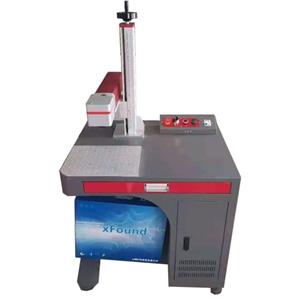

Fiber laser marking machine
Features:
1.Fiber laser marking machine is integrated design, small size(There is one cabinet and portable optional)
2.Fiber laser marking machine is fewer supplier, machine, low power consumption, power consumption max 800W
3.Fiber laser marking machine is internal air cooling system, reducing energy consumption,100000 hour maintenance-free
4.Fiber laser marking machine is high electro-optical conversion efficiency, maintenance-free, high stability, easy operation.
5. Fiber laser marking machine is with USB interface output control, can receive variety of file formats (such as PLT, BMP, JPG)
6.Fiber laser marking machine enable barcodes, text graphics, regular and irregular serial number and other marking.
Applications:
The fiber laser marking machine is widely used in hardware products, tools, accessories, electronic components, integrated circuits(IC), Electrical appliance, telecommunications equipment, precision instruments, jewelry, accessories, auto parts, medical devices and many other fields of graphics and text markup, as well as high-volume productions jobs. Also apply to the button of fabric, leather, wood products, luminous characters, non-metallic ink glass lamp marking.
Parameters
Model | Fiber 10W | Fiber 20/30/50W |
Length of laser wave | 1064um | 1064um |
Maximum laser power | 10W | 20/30/50W |
M2/Beam quality M2 | <1.2 | <1.2 |
Repeat frequency | 20-60KHZ | 20-80KHZ |
Marking Scope | 100X100mm 150X150mm | 100X100mm 150X150mm |
Marking depth | ≤0.25mm(Adjustable depending on material) | ≤0.3mm(Adjustable depending on material) |
Marking line width | ≤0.01mm | ≤0.01mm |
Marking line speed | ≤15000mm/s | ≤15000mm/s |
Min character | 0.1mm | 0.1mm |
Repeat precision | +-0.001mm | +-0.001mm |
Machine power | +-800W | +-800W |
Chassis | There is one cabinet and portable optional | There is one cabinet and portable optional |
Power supply | AC/220/50HZ | AC/220/50HZ |
