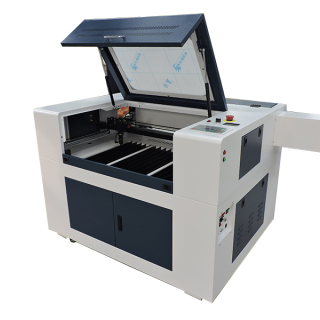

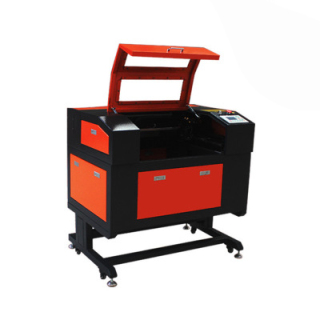

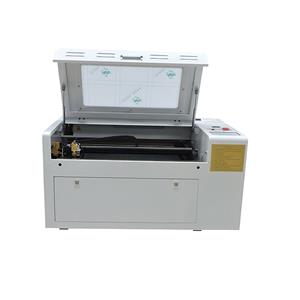

CO2 Laser Engraver
Laser engrving and cutting machine applications:
1.This laser engraver is suitable for small area craft processing. Engraving varies graphics and letter on double color board, wood, bamboo, organic glass, clothing, leather etc.
2.This laser engraver is suitable for engraving on non-metal materials, all kinds of stamp, like horn, wood, red plastic, organic glass etc.
3.The laser engraver can carve name, model, label, design and date on electronic parts.
4.Laser cutting machine can cut acrylic and organic glass.
Laser engraving machine
Features:
Laser engraving machine is newly developed craft engraving machine. It is of high speed and accuracy, stable performance, and can be placed conveniently on the desk. Smoke purifier can be specially installed.
1.Laser engraving and cutting machine is applied to small craft processing and a variety of engraving graphics and text on double-color board, wood, bamboo, acrylic, cloth, leather and other nonmetal material.
2.Laser engraving machine can carve the names, models, logos, design, date on the electronic components.
3.This laser cutting machine can do cutting, and max cutting thickness of acrylic is 10 mm.
4.The laser engraver can engrave all kinds of seal, such as on the material of horn, wood, red plastic, acrylic, ink pad, and so on.
5.Up-down table and rotary device is optional.
Parameters:
Model No. | 6040 5030 |
Engraving area | 600mmx400mm/500X300mm |
Laser tube power | 40W/ 60W |
Laser tube type | CO2 sealed glass |
Max Engraving Speed | 1200mm/s |
Max Cutting speed | 500mm/s |
Cutting thickness | <40mm |
Orient precision | < 0.01mm |
Graphic Format Supported | CDR, AI, BMP, PLT, DXF, DWG, DST, LAS (Can transmit files directly from CorelDraw) |
Min Character | English 1x1mm |
Operation System | DSP or DSP offline with USB Interface |
Machinery Resolution | 0.025mm (1000DPI) |
Power | AC220v+-10%/50Hz( 110v can be selected) |
Total Power | <1500W |
Optional | Up and down table, rotary device |
